5000 6000 lb Trailer Axle Kit - 6k 5k Axle -Brake 6 lug Utility Rockwell in Huntsville, TX

Select to Compare

Sold by

Sold by trailer parts unlimited
Located In Huntsville, TX
|

Check availability with Seller

You should enter at least one of the following: Phone Number or Email.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Manufacturer
ManufacturerTrailer Parts Unlimited
Condition
Conditionnew
Pull Type
Pull Typebumper
Payload Capacity
Payload CapacityNo Data
Weight
WeightNo Data
Floor Dimension
Floor DimensionNo Data

Description

6000 lb Rockwell American electric brake trailer axle 6 lug 5.5 bolt pattern with springs and u bolts.

This axle comes fully assembled just like picture shows. this trailer axle is ready to install on your trailer.


Many widths are available.


Axle Specs:

3" Tubing
Spindle: #42 with an inner journal dimension of 1-3/4" and outer journal of 1-1/4".
Cambered Axle for maximum tire life
1/2" studs
6 lug hubs 5.5" bolt pattern
EZ-Lube Grease
Spring pads pre welded on axle tube.
12" x 2" Electric Brakes
Posi Lube Grease for ez maintenance.
Electric Brakes and Brake Drums installed on axle.
This axle comes fully assembled ready to install.
Internal parts:

5200 Rockwell Axle Inner Bearing - 25580
5200 Rockwell Axle Inner Race - 25520
5200 Rockwell Axle Outer Bearing - 15123
5200 Rockwell Axle Outer Race - 15245
5200 Rockwell Axle Seal - 10-36
5.2k Rockwell Axle Drum - 6 lug
5.2k Rockwell Axle Beam - 5.2k Tube
5.2k Rockwell Axle Hub Cap - Easy Grease
5.2k Rockwell Axle Studs - 1/2"
5.2k Rockwell Axle Brake - 12"x2"


Features:
Axles come fully assembled
Packed with High-Temp Axle Grease
Underslung - Axle is welded with spring seats on the bottom so the springs are under axle
posi Lube Design
Removable rubber plug on the hub cap with easy access to a grease-able zerk fitting
Grease your axle without pulling off your whole entire hub

Designed for use on many Trailer applications
Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More.



How To Know What Axle To Order:

When it comes to ordering axles, it can be very confusing. We do not want you to order to wrong axle so we are going to tell you the easiest way we know to determine which one you need.


How To Measure Your Axle:

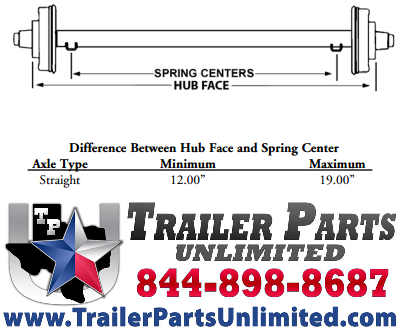

Hub Face:

Refers to the length of the axle measured from the base of one wheel stud to the base of the wheel stud on the opposite side of the axle.

(where the studs protrude out from the hub or where the two wheels butt up to each other)

(when hubs are mounted on the beam).

You can measure from one hub where the studs start on the drum, to the hub on the other side of the axle.

You can also get this by measuring from where the two wheels butt together on one side of the axle to where the two wheels but up together on the other side of the axle. (This measurement is important but not a deal breaker if its a inch or so different than what we show)



Spring Center:

is the approximate width of your trailer. It is measured from the center of the spring seat on one side of the axle to the center of the seat on the other.

This axle beam comes with the spring seats welded on.

The easiest way to measure this is to have a friend help you.
Have your friend hold the tape measure in the center of one spring one the axle while you pull the tape measure
down the same axle to the other side of the axle to the center of the other spring on the same axle.

This will give you your (SC) or Spring Center Measurement.

If your like myself and do not have many friends to help you out. The easiest way to measure when by yourself is:

Hook the tape measure on the outside of one spring, pull down the axle to the inside of the other spring on the axle axle.

This will also give you your (sc) or Spring Center measurement.

(This measurement is the most important measurement to get, so please double and triple check your measurement)


SHIPPING
Items must ship to a commercially zoned address with forklift or loading dock.
We can also ship the items to a freight hub in your area for you to pick up at for no additional cost.
If we must ship items to a house or residential address there will be a $125 fee.

Trailer Parts Unlimited
631 state hwy 75 north
Huntsville Texas 77320

IN GOD WE TRUST



pick up or have items shipped to your door!

Trailer Parts Unlimited

844-898-8687

cell: (call or text) 936-647-0898 or 936-828-0719

631 State Hwy 75 North, Huntsville Texas 77320

Mon-Sat 9am - 7pm

www.trailerpartsunlimited.com
www.facebook.com/trailerpartsunlimited

Wholesale Trailer parts, tires, and wheels to the public!

Pick up or have items shipped to you quickly

Family owned and operated

Blessed Are the Meek For They Shall Inherit The Earth \

Specifications

Build
manufacturerTrailer Parts Unlimited
model5.2k 5200 lb Electric Brake Axle
year2020
conditionnew
pull typebumper
axles1
Weight and Dimensions
axle capacity5200.00 lbs
Other specifications
vin

Category

High Level CategoryHorse & Livestock
CategoryStock / Stock Combo Trailers
