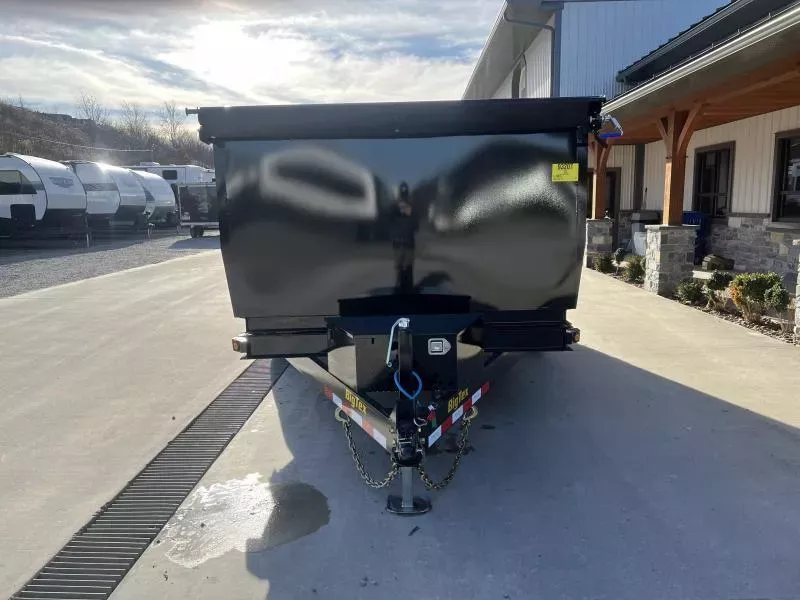

2025 Big Tex Trailers 14LX 7x14' High Side Dump Trailer 14000# GVW * 4' HIGH SIDES * SCISSOR HOIST * 2X3" TUBE TOP RAIL * UNDERMOUNT RAMPS * COMBO GATE * 10 GA SIDES * TARP KIT * REAR STABILIZER JACKS in West Middlesex, PA
Sold by
Check availability with Seller
Description
14LX Channel Tandem Axle Dump Trailer
Tested Big Tex Tough. Value Guaranteed. The 14LX offers unbeatable value without sacrificing quality. Designed with a robust 6-inch channel frame and tongue, it ensures exceptional strength and durability. Its affordable price point includes essential features such as a hydraulic scissor lift system with power up, power down, and gravity down capabilities, forward self-adjusting brakes, and a heavy-duty adjustable coupler. Perfect for hauling both equipment and loose materials, the 14LX guarantees reliable performance for the toughest jobs. Discover the value-driven 14LX and experience premium quality at an economical price.
Watch a video of this model: https://youtu.be/5TIVcaRZboo?si=PphBpl_eGrEUgyGS
| Standard Feature | Available Options |
|---|---|

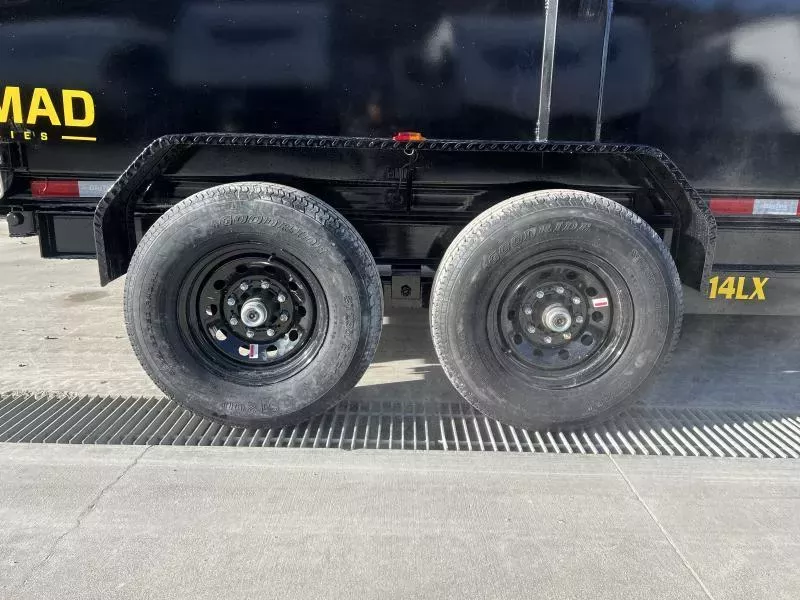

| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tongue | 6" Channel |
| Coupler | Adjustable 2-5/16" Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 7,000# Top Wind Drop Leg Jack |
| Frame | 6" Channel |
| Cross-Members | 3" Channel on 16" Centers |
| Floor | 10 Gauge Smooth Steel |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Square Broke |
| Ramps | 6.5' Slide in Ramps with Integrated Ramp Door |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness |
| Tires | ST235/80 R-16 Load Range-E 10 Ply Radial Tires |
| Bolt Pattern | 6 Bolt |
| Wheels | Black Mod Steel |
| Spare Mount | Side Spare Tire Mount |
| Spare Tire | Not Included |
| Paint Type | Professional Finish w/ Primer Standard |
| Paint Color | Black |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment |
| Break-Away Kit | Complete System with Breakaway Cable |
| Battery | 12V Deep Cycle |
| Charger | 5A 110V on Board Battery Charger |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along sides and rear for Cargo Control |
| Power | Power Up/Power Down & Gravity Down Hydraulic Pump |
| Ram | Self-Contained Scissor |
| Sides | 24" Tall (10 Ga) with formed Channel Supports |
| Stabilizers | Rear Stabilizer Stands |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders |
| Top Rail | 3"x 2" Rectangular Tubing |
